Bob's Winter Commuter - Front Triangle Finished/Fork Built

Bob's Winter Commuter - Head Tube Joints

In this picture you can see both phases of joint finishing.

At the top of the picture the head-top tube joint is semi-finished (shaped).

The joint at the bottom of the picture, the Head-Down tube joint is completely finished.

Cam's Track Bike - Finished

Bob's Winter Commuter - Front Triangle Brazed

Bob's Winter Commuter - Top Tube

Bob's Winter Commuter - Start

Here is the start of a winter commuting bike for myself.  It is a 29'er mountain bike

design and will be set up with Nokian studded tires.  I will use a Nuvinci n360

rear hub (http://www.fallbrooktech.com/08_bicycle_n360.asp) I am curious

about what my impression will be of this hub.It will be interesting not having

set gears, but the hub is pretty heavy.  I will have cable routing for a regular

derailleured bike and will also probably run routing for a Rohloff 14 speed

internal hub.  ( I used one for years and rode thru a couple of winters with it).



Seat tube mitered to Bottom Bracket.

Close-up.

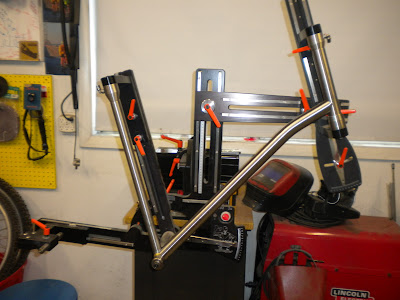

Majority of Front Traingle mitered.  This is the first time for me using a bent
downtube.  Took a bit of extra time planning the miters, but it worked out
and fit great!

Now I need to wait for the stock for the top tube to come in.  I am going

to put a curved top tube on this one also.  I should have the tubing later this

week, then I will bend and miter it and get the front traingle tacked and brazed.
